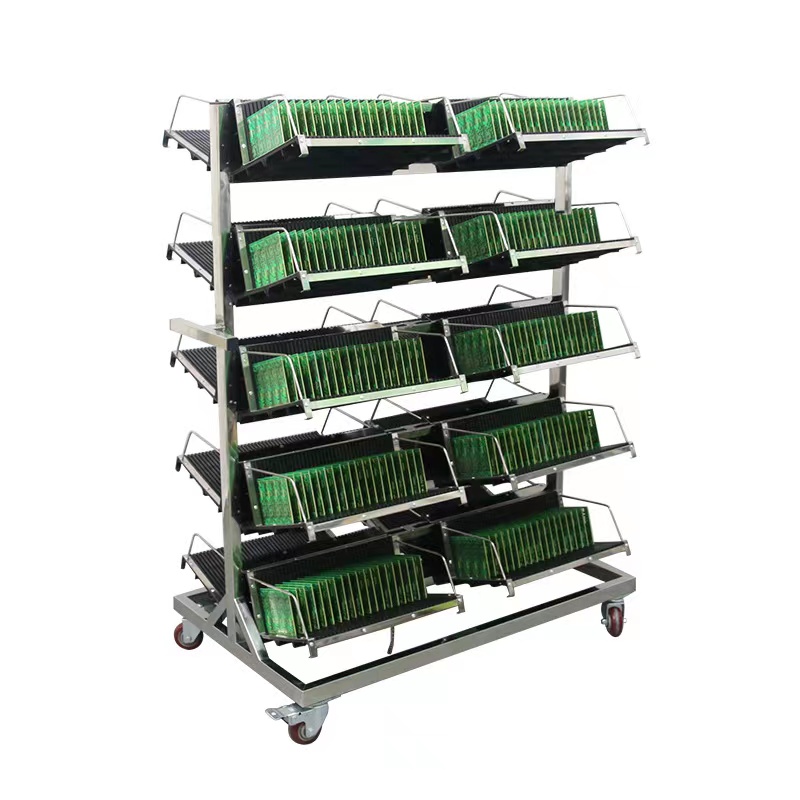

FR1005 ESD hanging Cart

ESD Hanging Cart: A Complete Guide

An ESD Hanging Cart is a specialized mobile storage and transportation solution designed for suspending and organizing static-sensitive electronic components, tools, or PCBs (Printed Circuit Boards) in an ESD-safe environment. These carts prevent electrostatic discharge (ESD) and ensure the safe handling of sensitive electronics in industries such as electronics manufacturing, semiconductor production, cleanrooms, and PCB assembly lines.

1. Key Features of an ESD Hanging Cart

a) ESD-Safe Materials

• Constructed using conductive or static-dissipative materials, including:

  • Powder-coated steel or aluminum for durability and grounding.

  • ESD-safe plastic or laminated shelves for non-conductive storage.

  • Conductive rails or hooks for secure hanging of electronic parts or tools.

b) Hanging System for Components

• Designed with ESD-safe metal or plastic rails for hanging PCBs, reels, trays, or tools.

• Hooks or slots may be adjustable to accommodate different sizes of items.

• Some models include anti-static foam inserts for added protection.

c) Grounding System

• Equipped with ESD-safe caster wheels to dissipate static charge into the ground.

• Some models feature grounding chains or wrist strap connections for extra safety.

d) Mobility and Stability

• Swivel caster wheels for smooth movement in production areas.

• Lockable wheels ensure stability when stationary.

• Ergonomic push handles for easy maneuverability.

e) Compliance with Industry Standards

• Meets ANSI/ESD S20.20, IEC 61340-5-1, and ISO 14644 standards for ESD control and cleanroom use.

2. Where Are ESD Hanging Carts Used?

ESD hanging carts are commonly used in:

• Electronics Manufacturing – For organizing and moving static-sensitive components.

• PCB Assembly Lines – For safely hanging and transporting PCBs.

• Cleanrooms & Laboratories – For contamination-free handling of electronics.

• Semiconductor Facilities – To prevent electrostatic damage during chip handling.

• Warehouses & Storage Areas – As a static-safe organization solution.

3. Choosing the Right ESD Hanging Cart

When selecting an ESD hanging cart, consider:

• Material: Choose between powder-coated metal, aluminum, or ESD-safe plastic based on durability needs.

• Hanging Mechanism: Look for adjustable hooks, rails, or trays to fit different components.

• Storage Capacity: Ensure the cart can hold the required number of PCBs, reels, or tools.

• Mobility: Select a cart with lockable ESD-safe casters for smooth and stable movement.

• Compliance: Verify that the cart meets ANSI/ESD and IEC static control standards.
