FR2901 Vacuum Suction Pen

Vacuum Suction Pen – Detailed Overview

A Vacuum Suction Pen is a precision tool designed to handle delicate and small components in electronics, watchmaking, laboratory work, and other industries requiring careful manipulation of tiny objects. It is widely used in Surface-Mount Device (SMD) assembly and repair to safely pick and place sensitive components without causing mechanical stress or contamination.

Types of Vacuum Suction Pens

1. Manual Vacuum Suction Pens

   • Operate using a squeeze bulb or a push-button mechanism.

   • Suitable for occasional use in low-volume tasks.

   • Affordable and easy to use.

2. Electric (Powered) Vacuum Suction Pens

   • Equipped with an electric vacuum pump for continuous suction.

   • Ideal for high-volume industrial applications.

   • Provides adjustable suction strength for handling various component sizes.

3. ESD-Safe Vacuum Suction Pens

   • Designed for handling electrostatic-sensitive components.

   • Made with conductive or dissipative materials to prevent electrostatic discharge.

   • Commonly used in electronics manufacturing and repair.

Key Features and Benefits

1. Precision Handling

• Provides a non-mechanical, gentle grip on components, reducing the risk of damage compared to tweezers.

• Ensures accurate placement in SMD assembly and repair processes.

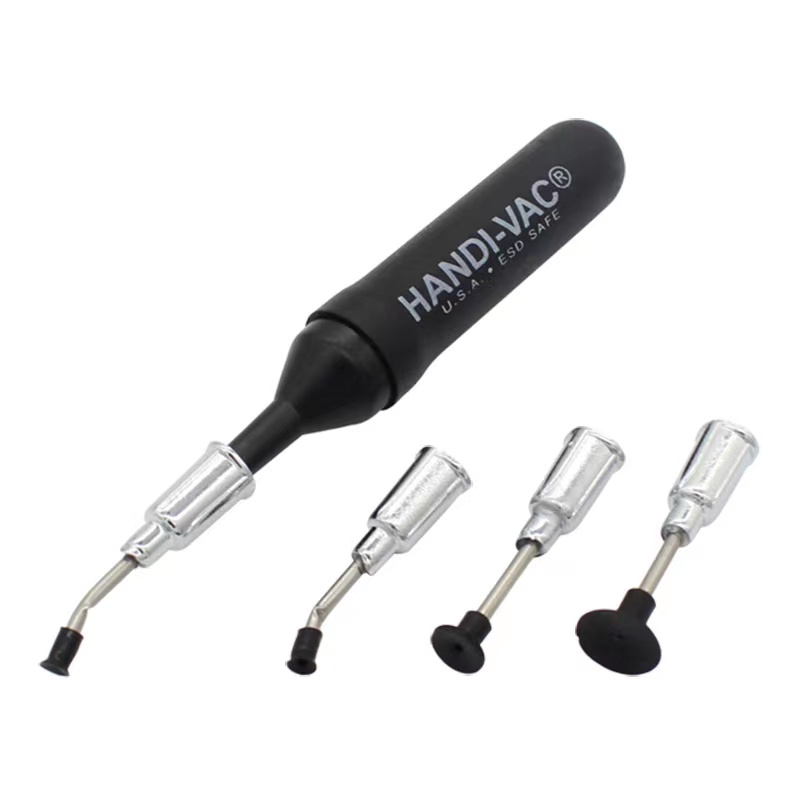

2. Interchangeable Suction Cups

• Comes with different-sized rubber or silicone suction tips.

• Enables handling of various component sizes, from small resistors to large ICs.

3. Ergonomic and Efficient

• Lightweight and comfortable to use for extended periods.

• Reduces hand fatigue compared to traditional tweezers, making assembly work more efficient.

4. Anti-Static Protection (ESD-Safe Models)

• Prevents electrostatic discharge that could damage sensitive electronic components.

• Essential for handling microchips, PCBs, and semiconductor devices.

5. Versatile Applications

• Electronics Assembly & Repair – Used in SMD component placement and PCB repairs.

• Semiconductor Manufacturing – Safely moves delicate wafers and chips.

• Jewelry & Watchmaking – Handles tiny gemstones, screws, and watch parts.

• Laboratory Work – Moves small biological or chemical samples without contamination.

How to Use a Vacuum Suction Pen

1. Select the Right Suction Cup – Choose the appropriate size for the component you need to handle.

2. Activate the Vacuum –

   • For manual pens: Press and release the bulb or button to create suction.

   • For electric pens: Turn on the vacuum pump.

3. Pick Up the Component – Gently press the suction cup against the component until it adheres.

4. Move and Position – Carefully place the component in the desired location.

5. Release the Component –

   • For manual pens: Press the release button or squeeze the bulb.

   • For electric pens: Turn off the vacuum or press the release switch.

Popular Vacuum Suction Pen Brands & Models

Some well-known manufacturers of vacuum suction pens include:

• Hakko 394 – A manual vacuum pick-up tool popular for SMD applications.

• JBC T260-A – A professional-grade electric vacuum pick-up tool.

• Aven 18030 – A budget-friendly manual vacuum pen with multiple suction cups.

• Esico Triton VP-10 – A high-quality electric vacuum suction pen for industrial use.
