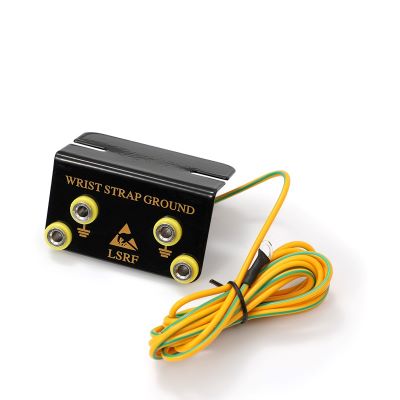

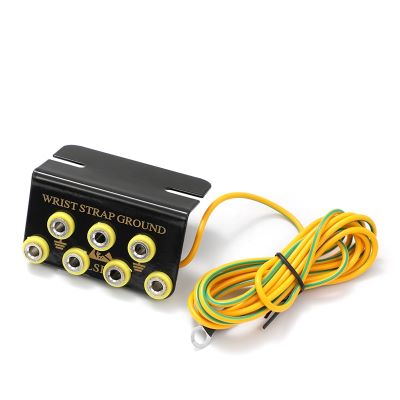

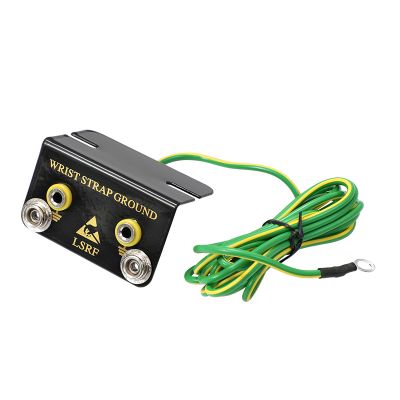

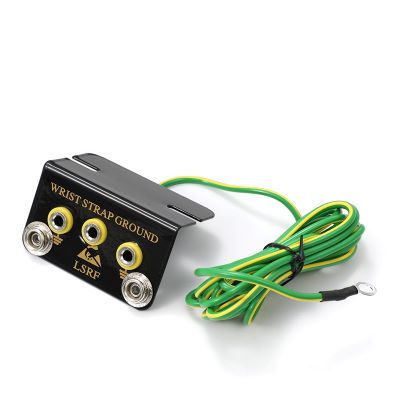

FR0508 ESD Ground Socket
FR0508 ESD Ground Socket is a reliable and convenient grounding solution designed for ESD-safe workstations and environments. It ensures a secure connection to the grounding system, protecting sensitive electronic components from electrostatic discharge (ESD) damage
Wire insulation: polypropylene Cable
Conductor: Bare copper wire
Stainless steel snap stud
Color: Black/Blue
Wire Diameter: 2.2MM
Coil cord length: 2.4M
Resistance : 100ohms typical
Two banana jacks for wrist straps
Two 4mm/7mm/10mm snaps for parking wrist strap coil cords, standard 10mm snaps Ring terminal
Customization is avaliable
Products
Products DETAILS
FR0508 ESD Ground Socket
The FR0508 ESD Ground Socket is a reliable and convenient grounding solution designed for ESD-safe workstations and environments. It ensures a secure connection to the grounding system, protecting sensitive electronic components from electrostatic discharge (ESD) damage. This ground socket is a versatile and essential component for any ESD-compliant setup.
Key Features:
1. Reliable Grounding Solution:
- Provides a secure and low-resistance path to ground, ensuring effective dissipation of static charges.
- Compatible with a variety of ESD equipment, including wrist straps, heel straps, and grounding cords.
2. Universal Design:
- Features standard banana jacks and 10 mm snap connectors, making it compatible with most ESD accessories and grounding systems.
- Suitable for integration into workstations, desks, or walls for seamless operation.
3. Durable Construction:
- Made from high-quality, durable materials that withstand frequent use in demanding environments.
- Corrosion-resistant metal connectors ensure long-lasting performance and consistent conductivity.
4. Simple Installation:
- Compact and lightweight design allows for quick and easy installation on workstations, benches, or other grounding points.
- Comes with pre-drilled holes or adhesive backing for flexible mounting options.
5. ESD Compliance:
- Meets international ESD standards such as ANSI/ESD S20.20 and EN 61340-5-1, ensuring safety and reliability in static-sensitive environments.
6. LED Indicator (Optional):
- Some models include a built-in LED status indicator to verify proper grounding at a glance, enhancing safety and usability.
Applications:
- Electronics Manufacturing: Protects sensitive components like circuit boards and microchips during assembly or inspection.
- Cleanrooms: Maintains ESD compliance in contamination-controlled environments.
- Laboratories and Testing Facilities: Grounds personnel and equipment during testing and calibration.
- Repair and Maintenance: Essential for ESD-safe handling of electronic devices during repairs.
- ESD Workstations: Ensures proper grounding of tools and accessories in static-sensitive areas.
Benefits:
- Secure Connection: Provides reliable grounding for ESD-sensitive environments.
- Easy Integration: Universal connectors ensure compatibility with most ESD equipment.
- Durability: Built to withstand daily use in industrial and laboratory settings.
- Compact Design: Saves space while ensuring effective static control.
- Compliance: Meets global ESD standards, ensuring adherence to industry requirements.
Care and Maintenance:
-
Inspection:
- Regularly inspect the socket and connectors for wear, damage, or debris.
- Ensure all connections are secure and free from corrosion.
-
Testing:
- Periodically verify grounding performance using an ESD tester to ensure proper functioning.
-
Cleaning:
- Clean with a non-abrasive, ESD-safe solution to maintain optimal conductivity and prevent contamination.
-
Replacement:
- Replace the ground socket if it shows signs of degradation or inconsistent performance.
Specifications:
- Material: Conductive metal connectors with durable plastic housing.
- Connector Types: Standard banana jacks, 10 mm snaps.
- Mounting Options: Adhesive backing or pre-drilled holes.
- Compliance: ANSI/ESD S20.20, EN 61340-5-1.
Optional Features:
- LED Indicator: Provides a visual confirmation of proper grounding.
- Custom Mounting Options: Can be tailored for integration into specific workstation setups.
