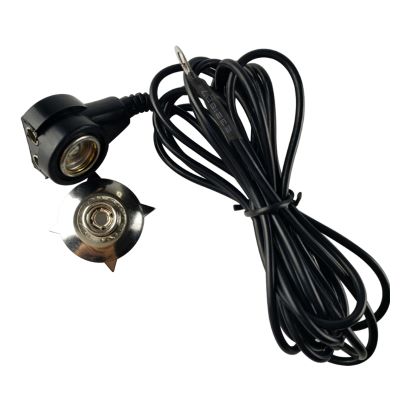

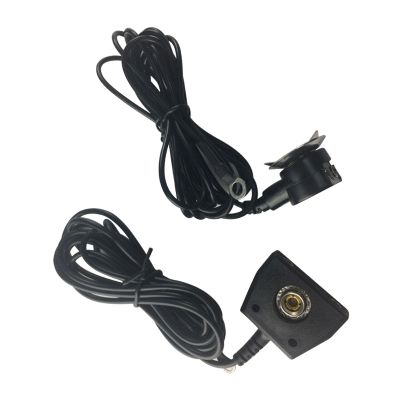

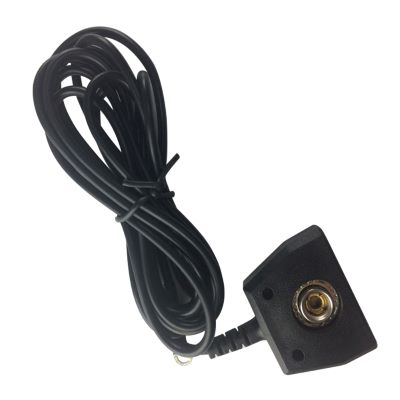

FR0509 ESD Ground Cord

The FR0509 ESD Ground Cord is a vital accessory for creating a reliable grounding system in static-sensitive environments. Designed for flexibility and durability, this cord ensures effective dissipation of static electricity, protecting sensitive electronic components from electrostatic discharge (ESD).

Key Features:

1. Effective Static Control:

• Provides a low-resistance path to ground, ensuring consistent and safe discharge of static electricity.
• Complies with industry standards such as ANSI/ESD S20.20 and EN 61340-5-1, offering reliable performance in ESD-protected areas.

2. Durable and Flexible Design:

• Constructed with a high-quality insulated outer jacket, protecting the inner conductive wire from wear and damage.
• Resistant to environmental factors such as moisture and abrasion, ensuring long-term durability.

3. Universal Compatibility:

• Equipped with standard banana plugs, snap connectors (10 mm), or alligator clips, making it compatible with a wide range of ESD workstations, wrist straps, and equipment.
• Suitable for grounding mats, benches, and other ESD-safe tools and surfaces.

4. Integrated Safety Resistor:

• Includes a 1 MΩ safety resistor in the grounding circuit to control the discharge rate and protect personnel from electrical surges.

5. Various Length Options:

• Available in multiple lengths (e.g., 1.8 m, 3 m, or custom sizes) to accommodate different workstation setups and grounding needs.

6. Cleanroom-Compatible:

• Made from low-shedding materials, suitable for cleanroom environments ranging from Class 100 to Class 10,000.

Applications:

• Electronics Manufacturing: Safeguards sensitive components like PCBs and microchips during assembly and testing.
• ESD Workstations: Grounds wrist straps, mats, and equipment to ensure a static-free workspace.
• Repair and Maintenance: Provides grounding for technicians working on ESD-sensitive devices.
• Cleanrooms: Maintains cleanliness and static control in contamination-sensitive environments.
• Laboratories and Testing Facilities: Grounds personnel and tools during calibration and testing of electronics.

Benefits:

1. Reliable Grounding: Ensures effective dissipation of static electricity, preventing damage to ESD-sensitive items.
2. Durability: High-quality materials offer resistance to wear and environmental stress.
3. Ease of Use: Standard connectors and various lengths make setup quick and simple.
4. Safety: Integrated resistor ensures user protection from electrical surges.
5. Versatility: Compatible with a wide range of ESD tools and equipment.

Care and Maintenance:

1. Inspection:
   • Regularly check the cord for signs of damage, such as fraying or broken connectors.
2. Cleaning:
   • Wipe the cord with a clean, dry cloth or an ESD-safe cleaner to remove dirt and maintain conductivity.
3. Testing:
   • Periodically test the cord using an ESD tester to verify proper grounding performance.
4. Replacement:
   • Replace the cord if it shows signs of wear or fails to meet grounding standards.

Specifications:

• Material: Durable insulated jacket with conductive inner core.
• Connector Options: Banana plugs, 10 mm snaps, or alligator clips.
• Safety Resistor: 1 MΩ integrated resistor.
• Length Options: 1.8 m, 3 m, or custom sizes.
• Compliance: ANSI/ESD S20.20, EN 61340-5-1.

Customization Options:

• Custom cord lengths to fit specific workstation configurations.
• Optional double-ended connectors for more versatile setups.
