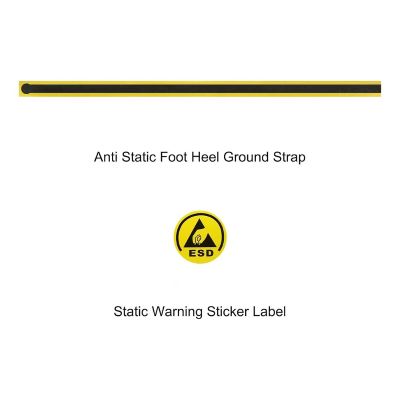

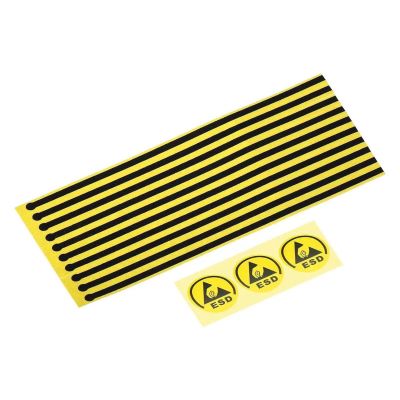

FR0507 ESD Disposable Heel Grounder
FR0507 ESD Disposable Heel Grounder is a single-use grounding solution designed to protect sensitive electronic components and devices from electrostatic discharge (ESD).
Material: Antistatic fabrics with conductive coated polyester
Resistance: <=10^6ohm
Static decay times: +-0.01second (@42”% RH,21℃)

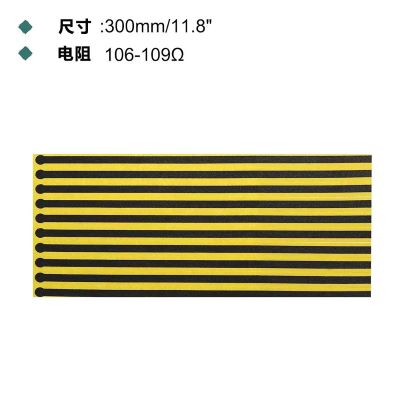

Size: 30*1.25cm (Standard size) 60*1.25cm (Longer size)
Customization is avaliable
Products
Products DETAILS
FR0507 ESD Disposable Heel Grounder
The FR0507 ESD Disposable Heel Grounder is a single-use grounding solution designed to protect sensitive electronic components and devices from electrostatic discharge (ESD). This lightweight and easy-to-use heel grounder is perfect for temporary workers, visitors, or situations where reusable solutions are impractical.
Key Features:
1. Disposable Design:
- Intended for single-use applications, ensuring hygiene and eliminating the need for cleaning or maintenance.
- Ideal for environments with high personnel turnover or temporary ESD grounding requirements.
2. Effective ESD Protection:
- Provides a safe and reliable path to ground by dissipating static charges through conductive flooring.
- Meets international ESD standards such as ANSI/ESD S20.20 and EN 61340-5-1 for performance and reliability.
3. Convenient and Adjustable Fit:
- Features a self-adhesive strap that easily attaches to most types of footwear, including boots, sneakers, and dress shoes.
- Adjustable design ensures a secure and snug fit for a wide variety of shoe sizes.
4. Integrated Conductive Ribbon:
- Equipped with a conductive grounding ribbon that is placed inside the shoe to make direct contact with the user’s skin or conductive socks.
- Ensures consistent static discharge during use.
5. Lightweight and Compact:
- Minimalistic design allows for easy transportation and storage, making it suitable for quick deployment in dynamic environments.
6. Cleanroom-Safe Materials:
- Made from low-shedding, cleanroom-compatible materials, suitable for environments ranging from Class 100 to Class 10,000.
Applications:
- Electronics Manufacturing: Protects sensitive components during handling or assembly by temporary personnel.
- Cleanrooms: Ensures compliance with ESD and contamination control standards.
- Visitors and Contractors: Provides grounding for short-term personnel in ESD-controlled areas.
- Field Service and Repairs: Convenient solution for technicians working on-site in ESD-sensitive environments.
- Training and Temporary Workstations: Ideal for short-term use during training sessions or setup phases.
Benefits:
- Cost-Effective: Affordable, disposable solution for temporary grounding needs.
- Hygienic: Eliminates the need for cleaning or maintenance, reducing cross-contamination risks.
- User-Friendly: Quick and easy to apply, requiring no special tools or training.
- Portable: Lightweight and compact, suitable for on-the-go applications.
- Compliant: Meets global ESD standards, ensuring reliable static control.
Care and Usage Instructions:
-
Application:
- Remove the adhesive backing and attach the heel grounder to the underside of your shoe, ensuring the conductive ribbon is placed inside the shoe.
- Ensure the adhesive is firmly secured for reliable grounding.
-
Testing:
- Test with an ESD footwear tester before entering static-sensitive areas to confirm proper grounding.
-
Disposal:
- Dispose of the heel grounder after use following local waste disposal regulations.
Considerations:
- Suitable for temporary use only; for long-term applications, consider reusable heel straps.
- Requires conductive flooring or mats to function effectively.
- Ensure the conductive ribbon maintains direct contact with the user’s skin or conductive socks for optimal performance.
