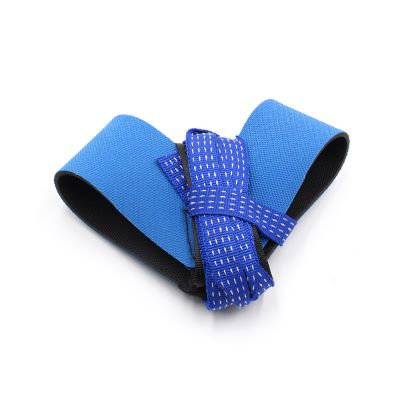

FR0506 ESD Heel Straps
Material: Rubber, adjustable Velcro, conductive webbing
Size: 200*38*2mm
Resistance: 1M oh
m Static decay time: 0.1s
Color:blue/black, black/white, black/red
Customization is available
Products
Products DETAILS
FR0506 ESD Heel Straps
The FR0506 ESD Heel Straps are a practical and cost-effective solution for grounding personnel in static-sensitive environments, especially when wrist straps are impractical. These heel straps ensure effective electrostatic discharge (ESD) protection by allowing workers to remain grounded while maintaining freedom of movement.
Key Features:
1. Effective ESD Protection:
- Provides a reliable path to ground by dissipating static electricity through conductive flooring.
- Meets ESD standards such as ANSI/ESD S20.20 and EN 61340-5-1, ensuring compliance with industry requirements.
2. Durable Construction:
- Made from conductive rubber and antistatic materials, ensuring long-lasting performance.
- Designed to withstand the rigors of regular use in industrial and cleanroom environments.
3. Adjustable and Secure Fit:
- Equipped with an adjustable elastic strap that wraps securely around most shoe types, including boots and sneakers.
- Fits a wide range of footwear sizes, ensuring versatility and convenience.
4. Integrated Conductive Ribbon:
- Features a conductive grounding ribbon that is placed inside the shoe, making direct contact with the user’s skin or conductive socks to create a static discharge pathway.
- Ribbon length is optimized for comfort and effectiveness.
5. Cleanroom and ESD-Safe Design:
- Low-shedding materials ensure compatibility with cleanroom environments ranging from Class 100 to Class 10,000.
- Provides effective ESD grounding without introducing particulate contamination.
6. No Restriction of Movement:
- Unlike wrist straps, heel straps allow workers to move freely without being tethered to a grounding point, making them ideal for dynamic work environments.
Applications:
- Electronics Manufacturing: Protects sensitive electronic components during assembly or inspection.
- Semiconductor Industry: Safeguards wafers and microchips from ESD damage.
- Cleanrooms: Maintains cleanliness while ensuring static control.
- Laboratories and Testing Facilities: Provides grounding for personnel working with ESD-sensitive equipment.
- Warehouses and Production Lines: Ideal for workers who frequently move across ESD-safe flooring.
Benefits:
- Hands-Free Grounding: Eliminates the need for wrist straps, providing unrestricted hand movement.
- Cost-Effective: Durable, reusable design reduces the need for frequent replacements.
- User-Friendly: Easy to wear, adjust, and maintain for workers of all experience levels.
- Versatile: Compatible with most shoe types and conductive flooring systems.
- Cleanroom-Compatible: Suitable for environments with strict contamination control requirements.
Care and Maintenance:
-
Cleaning:
- Wipe the straps and ribbon with a cleanroom-safe cleaning solution to maintain hygiene and conductivity.
- Avoid harsh chemicals that may degrade the materials.
-
Inspection:
- Regularly check for signs of wear, such as fraying or loss of elasticity, and replace as necessary.
-
Testing:
- Verify grounding performance using an ESD footwear tester or resistance meter periodically.
-
Storage:
- Store in a clean, dry area to prevent damage when not in use.
Certifications:
- ESD Compliance: ANSI/ESD S20.20, EN 61340-5-1.
- Cleanroom Standards: Suitable for Class 100 – Class 10,000 cleanrooms.
