FR1305 ESD Bubble Bag

ESD Bubble Bag – Complete Guide

An ESD Bubble Bag is a protective packaging solution designed to protect sensitive electronic components from both electrostatic discharge (ESD) and physical damage during storage and transport. It combines the anti-static properties of ESD-safe materials with the cushioning effect of bubble wrap to provide dual protection for delicate devices.

1. What is an ESD Bubble Bag?

An ESD Bubble Bag is a bubble wrap packaging that has been specially manufactured with anti-static properties. The bubble film inside the bag provides shock absorption and cushioning, while the outer layer is ESD-safe to prevent electrostatic discharge from damaging electronic components.

The bag is made from conductive or anti-static plastic, typically polyethylene (PE), that has been treated to dissipate static charges and protect sensitive devices, such as circuit boards, chips, and other electronics.

2. How Does an ESD Bubble Bag Work?

An ESD Bubble Bag combines two key functions:

Electrostatic Protection: The bag material has antistatic additives that dissipate static charges and prevent static buildup, ensuring safe handling of electrostatic-sensitive items.

Shock Absorption: The bubble wrap inside provides cushioning to protect components from physical impacts, vibrations, and drops during transit.

Key Features:

ESD-safe outer layer prevents static buildup and discharge.

Bubble cushioning absorbs physical shock, reducing the risk of mechanical damage to fragile electronics.

Lightweight and flexible for easy packing and handling.

3. Key Features & Benefits of ESD Bubble Bags

Dual Protection:

ESD protection ensures static charges are prevented from damaging electronic components.

Cushioning from the bubble layer reduces the risk of physical damage, especially for delicate components like PCBs, chips, and other fragile electronics.

Flexible & Lightweight:

ESD bubble bags are lightweight and can be easily shaped to fit various components, while providing maximum cushioning.

The bags are easy to fold, bend, and seal, ensuring a custom fit for your items.

Cost-Effective:

Provides both static protection and shock resistance in one solution, making it a budget-friendly option compared to separate ESD bags and bubble wrap.

Durability & Tear-Resistance:

The bags are durable and tear-resistant, offering good protection against abrasions and punctures. The bubble layer adds strength to the overall packaging.

4. Best Uses for ESD Bubble Bags

Packing and transporting sensitive electronics like:

Printed circuit boards (PCBs)

Microchips and processors

Electronic assemblies

Cables, connectors, and switches

Protecting fragile items from both static and physical damage during shipping or storage.
Shipping items in ESD-sensitive environments where both shock absorption and electrostatic protection are needed.
Additional layer of protection inside an ESD shielding bag for extra security during long-term storage or shipping.

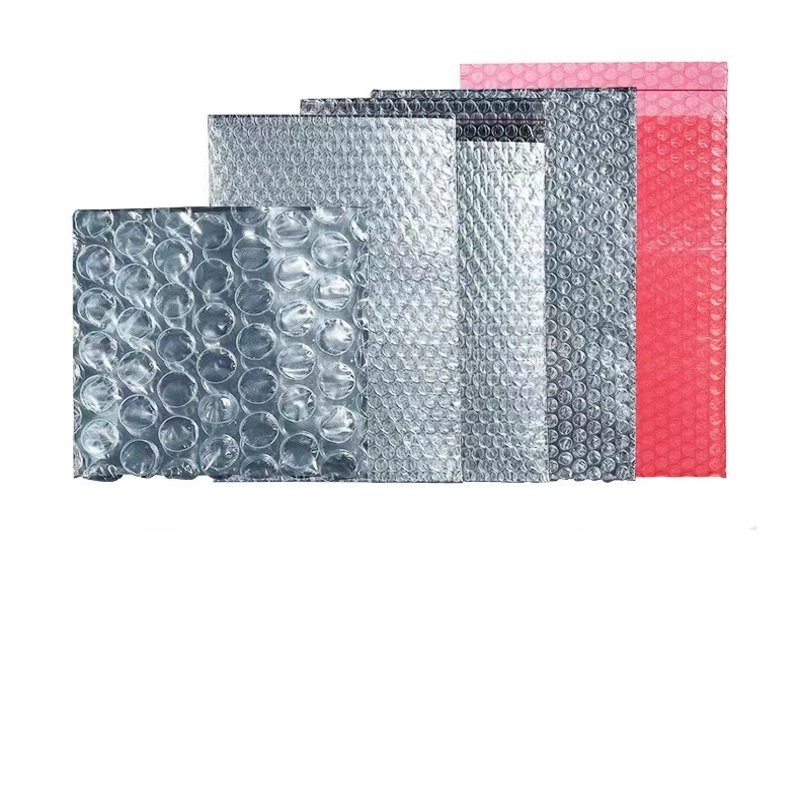

5. Types of ESD Bubble Bags

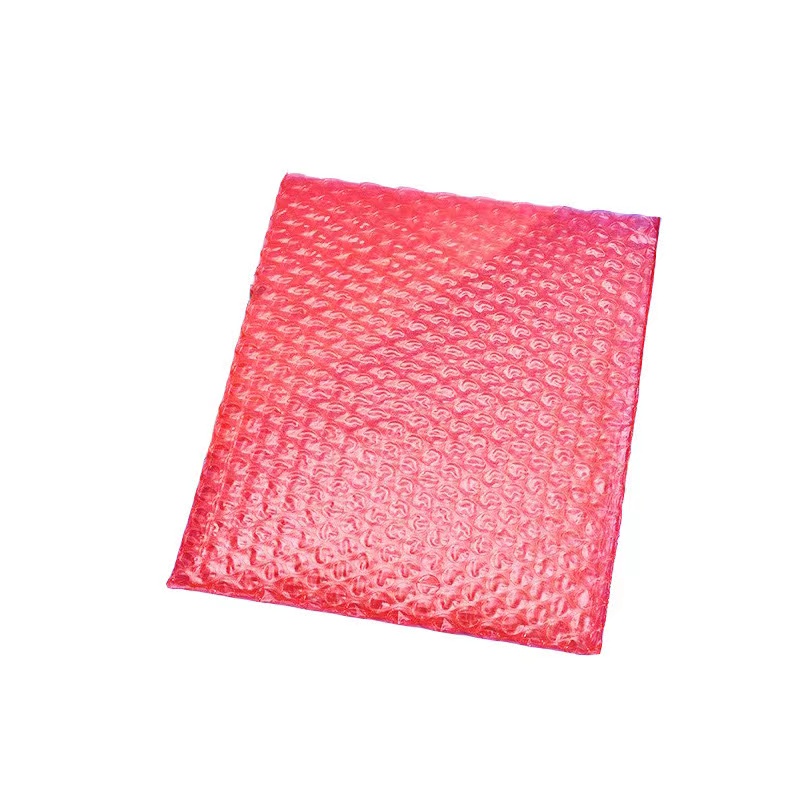

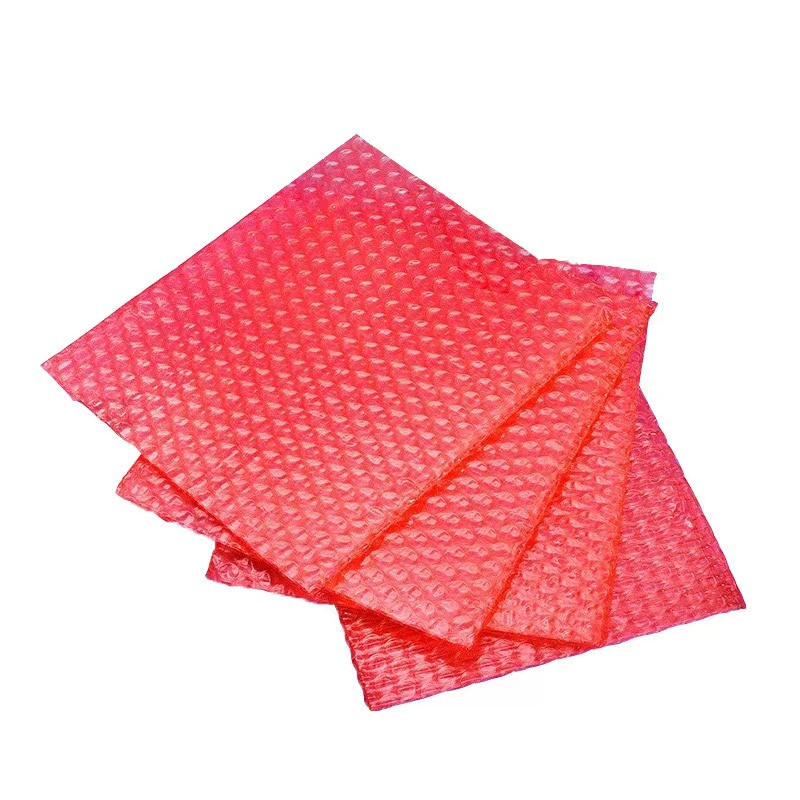

Standard ESD Bubble Bags:

Made with anti-static polyethylene (PE) or conductive materials.

Single-layer or multi-layer bubble film depending on the level of protection required.

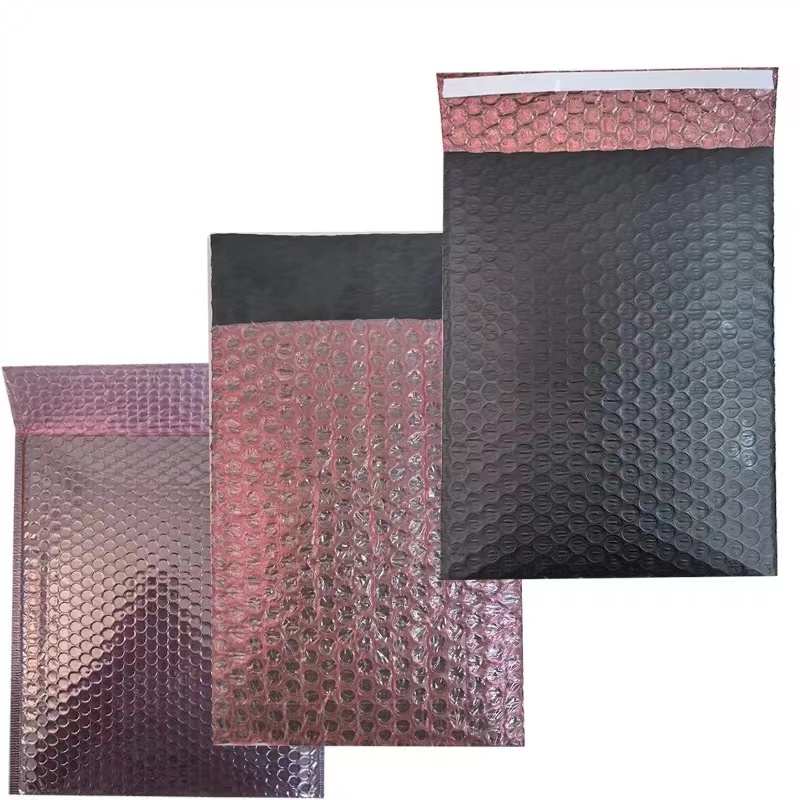

Metalized ESD Bubble Bags:

These have an added metalized layer for enhanced shielding against electromagnetic interference (EMI) and external ESD fields.

Best for high-sensitivity devices that require maximum protection.

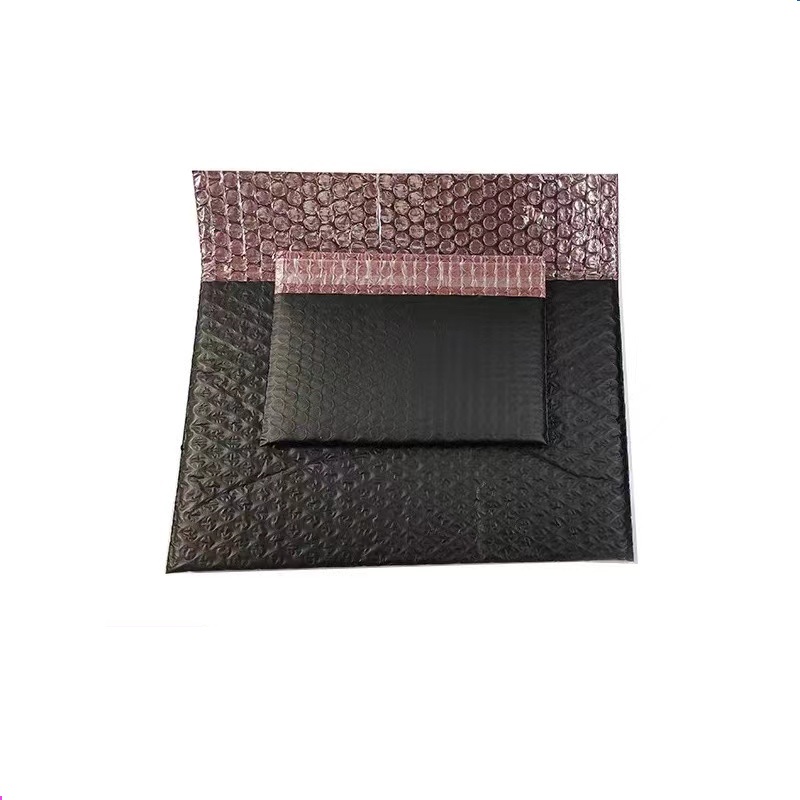

Zipper-Style or Sealable ESD Bubble Bags:

Resealable bags for reusable packaging.

Ideal for long-term storage of items that need to be accessed multiple times.

6. Key Advantages of ESD Bubble Bags

Provides Double Protection:

Combines both static protection and shock absorption in one bag.

Ideal for fragile components that require both types of protection.

Versatile & Customizable:

Can be used for a wide range of items with varying shapes and sizes.

Custom sizes are available to fit specific components or requirements.

Reusable Option:

Resealable bags can be used multiple times, making them a sustainable choice for businesses that handle electronics regularly.

7. Best Practices for Using ESD Bubble Bags

Ground your workspace when handling static-sensitive components.
Ensure proper sealing to keep your components protected.
Use appropriate size bags for the items you are packing to ensure full protection.
Avoid direct contact with metal parts or sharp objects that could damage the bag or create pinholes.
Store ESD bubble bags in a cool, dry place to prevent degradation of anti-static properties.

8. When to Use ESD Bubble Bags

For electronic components that require both ESD protection and cushioning.
In transit or storage when extra shock protection is needed alongside static dissipation.
In environments with moderate-to-low ESD risk (where high shielding is not necessary).
As a secondary protective layer inside more robust ESD shielding bags for delicate electronics.
