FR1304 ESD Black Conductive Bag

ESD Black Conductive Bags – Detailed Information

1. What is an ESD Black Conductive Bag?

An ESD Black Conductive Bag is a protective packaging solution designed for static-sensitive electronic components. Unlike pink antistatic bags that only prevent charge buildup, black conductive bags actively dissipate electrostatic charges and offer moderate shielding from external electrostatic fields.

These bags are made from carbon-infused polyethylene (PE), which gives them their conductivity and black color. The carbon additives allow electrical charges to flow safely across the surface and dissipate to ground, minimizing the risk of ESD damage.

2. How Do ESD Black Conductive Bags Work?

Conductive polyethylene materials ensure that electrostatic charges do not accumulate on the bag's surface. The conductivity level allows charges to be evenly distributed and neutralized quickly, reducing the chance of ESD-related failures in stored components.

• Surface Resistivity: Typically ranges between 10³ to 10⁶ ohms/square, making it highly effective at charge dissipation.

• Dissipation Speed: Conductive materials allow static charges to flow away in microseconds, protecting sensitive electronics.

• Electrostatic Shielding: While black conductive bags provide some protection against static fields, they are not a full replacement for metalized shielding bags when handling highly sensitive devices.

3. Key Advantages of ESD Black Conductive Bags

Conductive Material: Acts as a low-resistance path for electrical charges, preventing buildup.
Moderate ESD Protection: Reduces the risk of damage to sensitive components from static discharge.
Electrostatic Field Blocking: Provides some shielding against external static fields.
Flexible & Lightweight: Allows for easy handling and storage.
Durable & Tear-Resistant: Offers better mechanical strength compared to standard plastic bags.
Heat-Sealable & Resealable Options: Ensures contents are securely enclosed and protected.
Cost-Effective Alternative: More affordable than full ESD shielding bags while offering better protection than pink antistatic bags.

4. Common Applications for ESD Black Conductive Bags

Storing and transporting semi-sensitive electronics such as:

Circuit board components

Cables and connectors

Switches and sensors

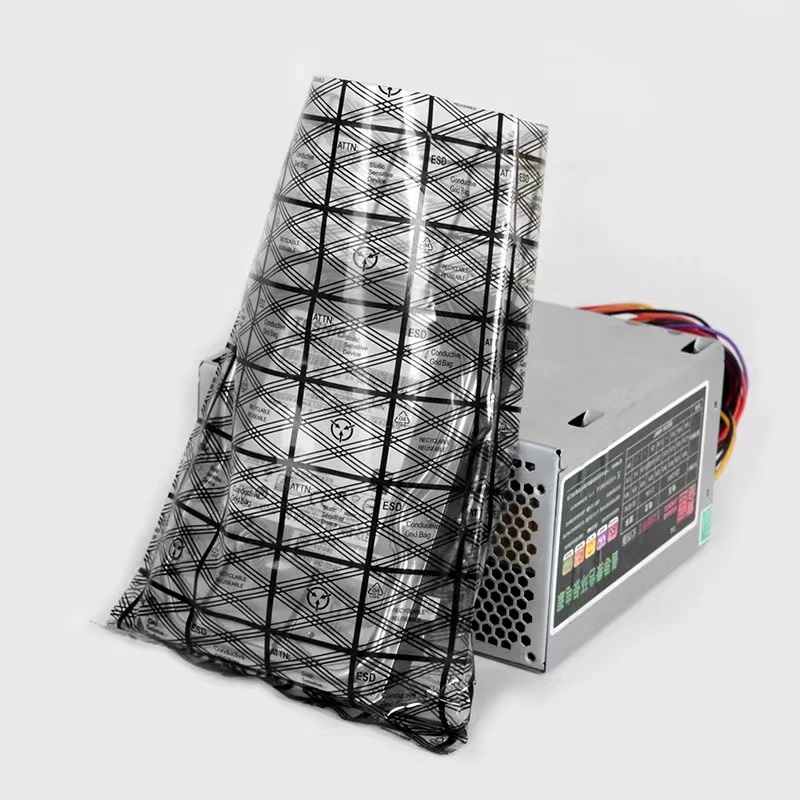

Power supplies

Electromechanical assemblies

Providing additional ESD protection inside an ESD-safe environment (EPA).
Acting as an inner liner within a metalized shielding bag for enhanced protection.

Not Recommended for:

Highly sensitive microelectronics (e.g., microprocessors, ICs, or PCBs).

Long-term storage in high-risk ESD environments without additional shielding.

5. Best Practices for Using ESD Black Conductive Bags

Use in an ESD-protected area (EPA) whenever possible.
Ensure proper grounding before handling sensitive components.
Seal the bag properly using a heat-sealer or zip-lock closure.
Do not store black conductive bags in humid or extreme conditions to maintain conductivity.
For highly sensitive components, combine with ESD shielding bags for better protection.
