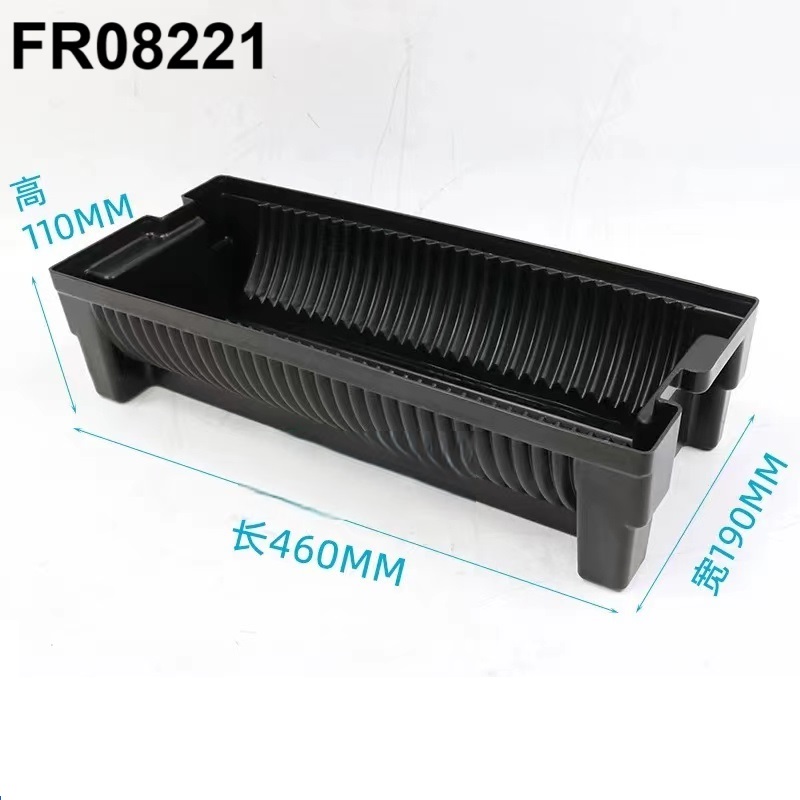

FR08221 ESD Rack for PCB Storage

ESD Rack for PCB Storage – Comprehensive Guide

An ESD rack for PCB storage is a specialized shelving or slot-based system designed to safely store and organize printed circuit boards (PCBs) while preventing electrostatic discharge (ESD) damage. These racks are commonly used in electronics manufacturing, assembly lines, testing facilities, and repair centers to ensure the safe handling of static-sensitive components.

1. Why Use an ESD Rack for PCB Storage?

✔ Protects PCBs from Electrostatic Discharge – Prevents latent and catastrophic failures
✔ Organized Storage & Easy Access – Keeps PCBs neatly arranged and reduces handling time
✔ Space-Efficient & Stackable – Optimizes workspace organization
✔ Durable & Reusable – Made from ESD-safe materials for long-term use
✔ Compatible with ESD Workstations – Enhances static protection when used with ESD tables and floors

2. Types of ESD PCB Storage Racks

Key Features:

Slot-Based Design – Holds multiple PCBs securely
Adjustable Width – Accommodates different PCB sizes
Stackable & Modular – Saves space and allows expansion
ESD-Safe Materials – Ensures full static protection

3. Common Materials Used in ESD PCB Racks

Carbon-Filled Conductive Plastic – Provides maximum protection against static
ESD-Coated Polypropylene (PP) – Lightweight and cost-effective
Metal Frames with ESD Inserts – Offers strong structural support
ESD-Safe Foam Slots – Adds cushioning for fragile PCBs

4. Applications of ESD PCB Storage Racks

Electronics Manufacturing – Organizes PCBs during assembly
Quality Control & Testing Labs – Securely stores boards in an ESD-safe environment
Storage & Warehousing – Prevents static damage in long-term PCB storage
Repair & Maintenance – Safely holds PCBs while being serviced

5. How to Choose the Right ESD Rack for PCB Storage?

Determine PCB Size & Capacity

• Choose a rack that fits your PCB dimensions and storage volume needs

Select the Right Material

• Conductive racks for high-sensitivity components
• Dissipative racks for general-purpose use

Consider Mobility & Adjustability

• Fixed racks for permanent storage
• Adjustable racks for flexible PCB sizes
• Mobile racks with wheels for easy transport

Check for Customization Options

• Foam inserts for added cushioning
• Stackable racks for large-scale storage

6. Maintenance Tips for ESD PCB Racks

Regular Cleaning – Dust and debris can reduce ESD effectiveness
Store in an ESD-Protected Area – Use in combination with ESD flooring, tables, and wrist straps
Avoid Non-ESD Materials – Keep plastic bags or regular trays away from the rack
Inspect for Wear and Tear – Replace racks with worn-out slots or coatings
