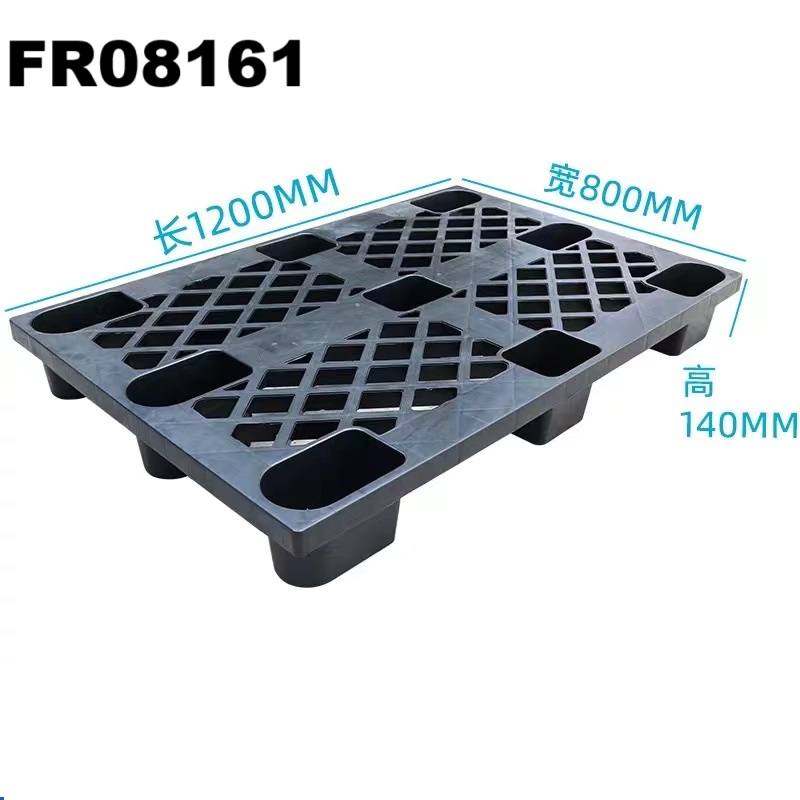

FR08161 ESD Pallet

ESD Pallet – Overview and Benefits

An ESD (Electrostatic Discharge) Pallet is designed to safely transport and store static-sensitive electronic components in ESD-protected areas (EPAs). These pallets are made from conductive or dissipative materials, ensuring the controlled dissipation of electrostatic charges to prevent damage to sensitive components.

Key Features of ESD Pallets

1. ESD-Safe Material

• Made from conductive plastic (carbon-filled polypropylene or polyethylene) or a mix of carbon and fiberglass.
• Surface resistance typically ranges from 10³ to 10⁹ ohms.
• Provides a controlled discharge path to prevent electrostatic buildup.

2. Load Capacity & Durability

• Designed to hold heavy loads without warping or cracking.
• Available in various weight capacities (e.g., 500 kg to 2000+ kg).
• Resistant to chemicals, moisture, and extreme temperatures.

3. Size Variability

• Comes in standard pallet sizes, such as 1200x800mm (Euro Pallet) and 48"x40" (North American Standard).
• Custom sizes available for specific applications.

4. Stackable & Nestable Options

• Some models are stackable for efficient storage.
• Nestable designs help save space when pallets are not in use.

5. Grounding Capability

• Many ESD pallets feature grounding points to connect with an EPA grounding system.
• Ensures the safe dissipation of charge when properly integrated into an ESD control program.

Applications of ESD Pallets

1. Electronics Manufacturing & Assembly

• Used to transport PCBs, ICs, and other static-sensitive devices.
• Ensures safe handling within cleanrooms and assembly lines.

2. Warehouse & Logistics

• Protects static-sensitive goods during storage and shipping.
• Used in automated handling systems for electronics distribution.

3. Aerospace & Defense

• ESD pallets are used in military and aerospace industries to transport delicate electronic components.

4. Automotive Industry

• Essential for EV battery handling and ECU (Electronic Control Unit) storage.

Types of ESD Pallets

How to Choose the Right ESD Pallet

✔ Load Capacity – Choose based on weight and type of load (lightweight components vs. heavy-duty racks).
✔ Size Compatibility – Match with warehouse racking, shelving, and transport systems.
✔ Material Type – Conductive plastic is ideal for most electronics applications.
✔ Stackability – Opt for stackable or nestable designs for better storage efficiency.
✔ Grounding Needs – Ensure it supports EPA grounding connections.

Recommended ESD Pallet Manufacturers

1. Conductive Containers, Inc.
2. Gorilla Pallets (ESD Series)
3. SSI Schaefer ESD Pallets
4. CABKA ESD Plastic Pallets
5. Loadhog Conductive Pallets
