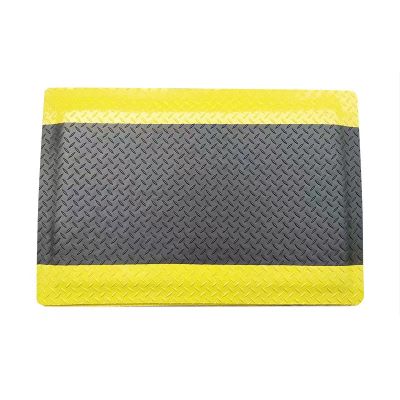

FR0602 ESD Anti Fatigue Mat

The FR0602 ESD Anti-Fatigue Mat is designed to combine ESD protection with ergonomic benefits, making it ideal for environments where workers stand for extended periods while handling electrostatic-sensitive devices. Here's a detailed breakdown of its features:

Key Features:

1. ESD Protection:

   • The mat provides effective electrostatic discharge (ESD) protection by dissipating static electricity from the worker and the equipment into the ground, preventing potential damage to sensitive components.
   • It helps maintain a static-free environment, essential in electronics assembly, repair, and cleanroom settings.

2. Anti-Fatigue Properties:

   • The mat is equipped with anti-fatigue features, designed to reduce stress on the body caused by prolonged standing.
   • It provides a cushioned surface that helps improve worker comfort, promoting better circulation and reducing fatigue during long hours of work.

3. Durable Construction:

   • Made from high-quality materials, the FR0602 is durable and resistant to wear, providing a long-lasting solution in high-traffic areas.
   • It can withstand the rigors of industrial environments, making it ideal for use in manufacturing floors, assembly stations, and other areas with frequent foot traffic.

4. Surface Texture:

   • The mat typically features a textured surface to improve traction and prevent slipping, ensuring both safety and stability for workers.
   • This textured surface also aids in ergonomic comfort, allowing workers to stand for longer periods without discomfort.

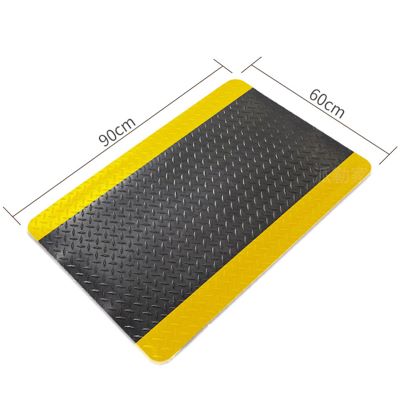

5. Size and Customization:

   • Available in various sizes to suit different workstations or areas. Larger rolls or mats can be cut to fit custom requirements.
   • Ideal for use around workbenches, assembly lines, or cleanrooms where both static control and worker comfort are essential.

6. Electrical Properties:

   • The mat is designed to have dissipative electrical properties with a resistance range typically between 10^6 and 10^9 ohms, which ensures the safe dissipation of static electricity without discharging it too quickly.

Applications:

• Electronics manufacturing
• Cleanroom environments
• Service centers for electronics
• Workstations in industries handling static-sensitive components
• Assembly lines and packing stations

Benefits:

• Enhanced worker comfort: The mat's anti-fatigue properties reduce the strain on the body during long hours of standing.
• Improved productivity: A comfortable worker is more efficient, leading to better overall performance in high-demand settings.
• Static control: The mat ensures that sensitive electronics and components are protected from ESD, reducing the risk of damage during assembly or maintenance.

Setup Instructions for FR0602 ESD Anti-Fatigue Mat:

1. Positioning the Mat:

   • Place the mat on a flat surface, such as the floor or a workbench. Ensure the mat covers the required area, providing adequate protection for workers who stand for long periods.
   • If you are using it on a workbench, make sure the mat spans the entire work surface where electronic components are being handled.

2. Grounding the Mat:

   • Attach the ground snap on the mat to the ESD ground cord.
   • Connect the other end of the ground cord to a common point ground (CPG). This could be a grounded electrical outlet or a specially designated grounding point within the workspace.
   • Ensure the grounding system is well-established to allow the mat to effectively dissipate static electricity.

3. Connecting Personal Grounding:

   • For workers standing on the mat, it is important to use ESD footwear or heel straps. These should also be connected to the common point ground to complete the grounding system.
   • If using heel straps, make sure they are properly adjusted and securely worn to provide continuous grounding.

4. Surface Placement:

   • Ensure the textured surface of the mat faces upward to provide both safety (by preventing slipping) and comfort (ergonomic benefits).
   • If you are using the mat for a large area, you may need to use multiple mats or rolls that can be cut to size to cover the necessary space.

Maintenance of FR0602 ESD Anti-Fatigue Mat:

1. Regular Cleaning:

   • Wipe the mat regularly to remove dirt, dust, and debris. A soft cloth dampened with a mild soap and water solution is recommended.
   • Avoid harsh chemicals or cleaners that could damage the mat or affect its ESD properties.
   • Make sure the mat is dry after cleaning to prevent slipping or moisture buildup.

2. Inspect for Wear and Tear:

   • Periodically check the mat for signs of wear, such as cracks, holes, or areas where the cushioning has diminished.
   • Inspect the grounding points on the mat to ensure they are secure and functioning properly. The grounding system should be checked regularly to maintain effective ESD protection.

3. Store Properly:

   • When the mat is not in use, store it in a cool, dry place away from direct sunlight or extreme heat to avoid material degradation.
   • Avoid rolling or folding the mat in a way that could cause permanent creases or damage.

4. Replacement:

   • If the mat shows signs of significant wear or the ESD properties are compromised, it may be time for replacement. A damaged or ineffective mat may not provide the necessary static protection, potentially risking damage to sensitive components.

5. Testing the Mat:

   • Regularly test the resistance of the mat to ensure it is still functioning properly. This can be done using an ESD resistance meter to verify the Resistance to Ground (RTG) is within acceptable limits (typically 10^6 to 10^9 ohms).
   • If the resistance readings fall outside the recommended range, the mat may need to be re-grounded or replaced.

Benefits of Proper Setup and Maintenance:

• Protects sensitive electronics from ESD that could cause irreversible damage.
• Ensures worker safety and comfort by reducing the risk of fatigue and providing a stable, slip-resistant surface.
• Maintains the integrity of the ESD control environment, ensuring the mat continues to protect both workers and components effectively.

If you have any specific questions on setup, maintenance, or testing methods, feel free to ask!
