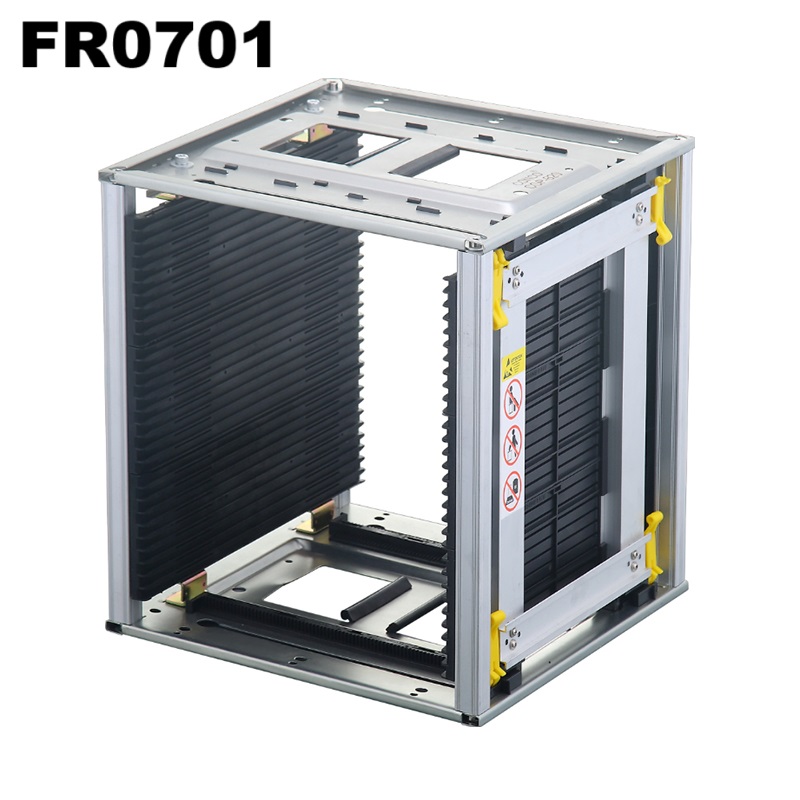

FR0701 ESD PCB Magazine Rack

Comprehensive Guide to ESD PCB Magazine Racks

An ESD PCB Magazine Rack is a specialized storage solution for holding, storing, and transporting Printed Circuit Boards (PCBs) safely in an Electrostatic Discharge (ESD)-protected environment. These racks are critical in electronics manufacturing, assembly, testing, and repair to prevent electrostatic damage to sensitive electronic components.

1. Why Use an ESD PCB Magazine Rack?

PCBs contain static-sensitive components that can be damaged by electrostatic discharge. An ESD-safe magazine rack prevents static buildup and dissipates any charge safely, ensuring reliable and damage-free handling of PCBs throughout the production process.

Key Benefits:

• Prevents electrostatic discharge damage

• Provides safe storage & organization of PCBs

• Allows easy transport between workstations

• Offers adjustable slot widths to accommodate different PCB sizes

• Made of durable, heat-resistant, and chemically resistant materials

2. Materials & Construction

Common Materials Used:

1. Conductive Polypropylene (PP) or Polycarbonate (PC)

   • Provides static dissipation

   • Lightweight yet durable

   • Commonly used for industrial-grade racks

2. Metal Reinforced Frames (Aluminum or Stainless Steel)

   • Provides structural strength

   • Ensures stability and long-term durability

3. Carbon-Fiber Reinforced Plastic (CFRP)

   • High mechanical strength

   • ESD-safe and chemical resistant

   • Suitable for cleanroom applications

3. Design Features

Slot & Capacity

• Adjustable Slot Widths:

  • Typically 2.5 mm to 10 mm

  • Allows customization based on PCB thickness

• Capacity:

  • Holds between 20 to 100+ PCBs, depending on size

Stackability & Modularity

• Stackable Design: Saves space in production areas

• Modular Construction: Can be expanded or reconfigured

ESD Protection Levels

• Conductive Material: Surface resistivity of 10³–10⁶ Ω/sq

• Dissipative Material: Surface resistivity of 10⁶–10⁹ Ω/sq

• Grounding Points: Ensures charge dissipation

Temperature & Chemical Resistance

• Suitable for high-temperature processes (e.g., reflow ovens)

• Resistant to acids, solvents, and cleaning chemicals

4. Applications

• PCB Manufacturing & Assembly

• Surface Mount Technology (SMT) Production

• Electronics Testing & Repair Labs

• Semiconductor & Cleanroom Environments

• Safe Storage in Warehouses & Logistics Centers

5. Choosing the Right ESD PCB Magazine Rack

Key Considerations

1. Size Compatibility: Ensure it fits your PCB dimensions

2. Slot Adjustability: Flexible widths for various board thicknesses

3. Material Quality: Conductive/dissipative material for ESD safety

4. Stackability & Transport Features: Handles, wheels, or lift compatibility

5. Heat & Chemical Resistance: Suitable for your production environment
