FR1403 Conductive Tape

Conductive Grid Tape – ESD Protection for Electronics

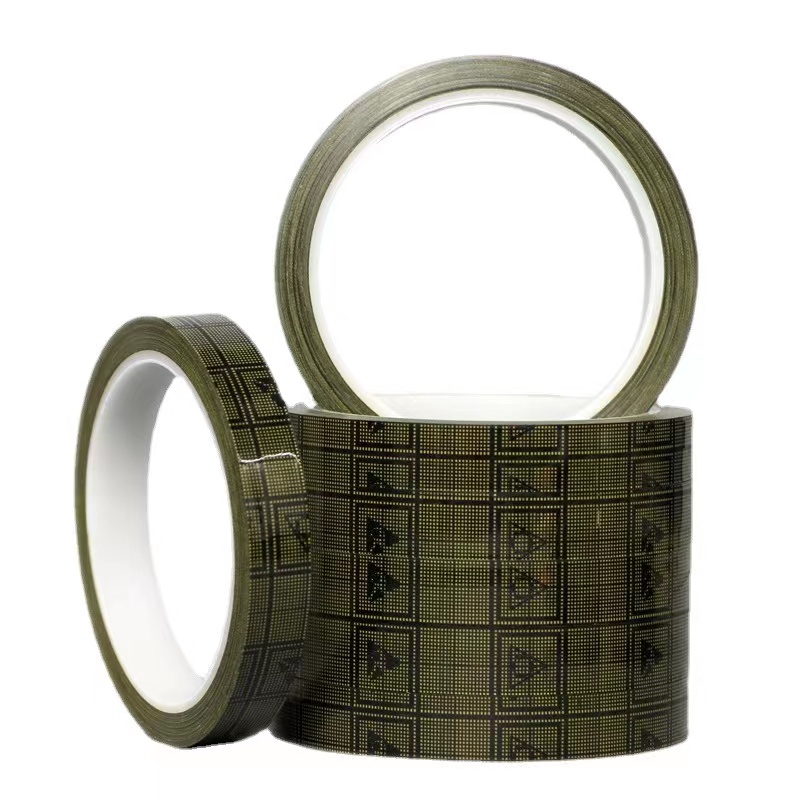

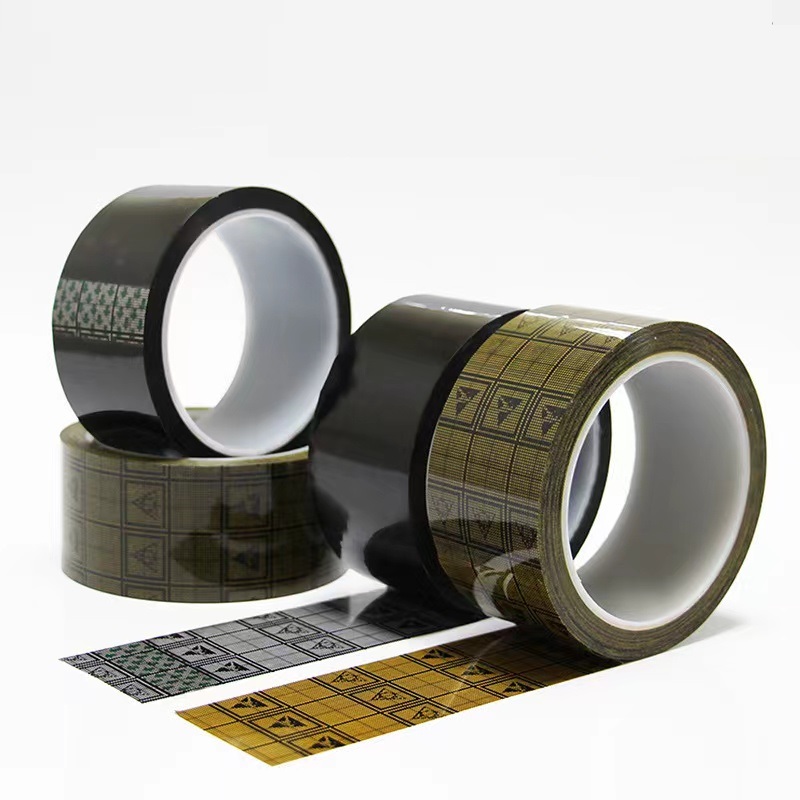

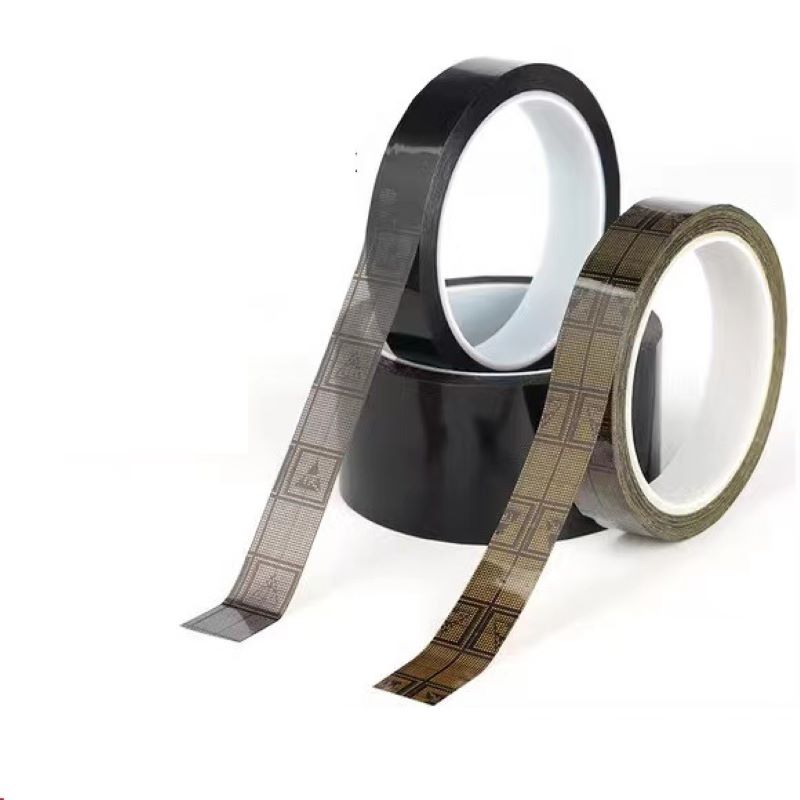

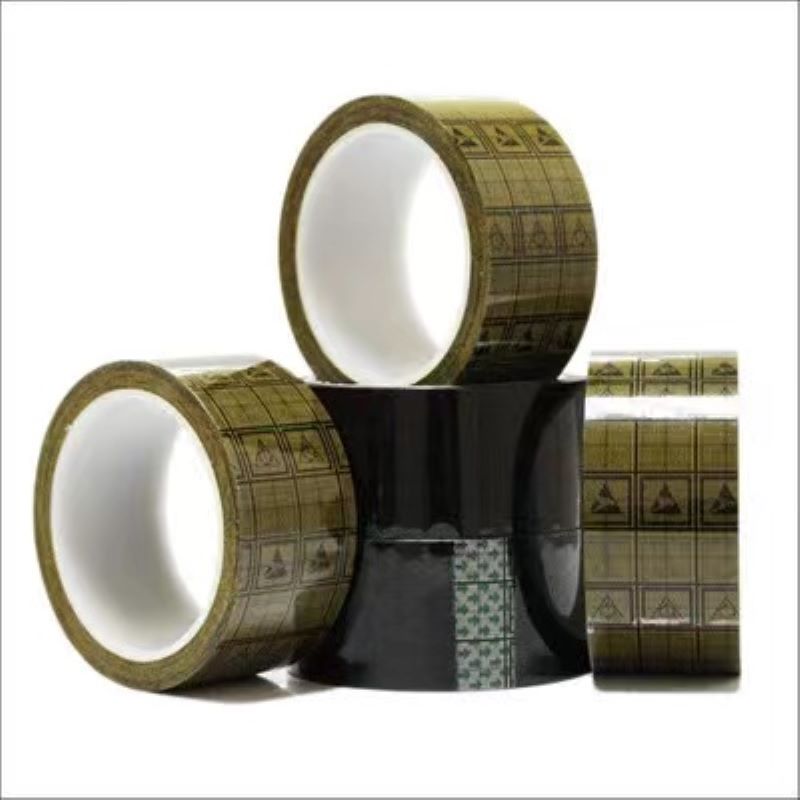

Conductive Grid Tape is an anti-static tape designed to dissipate electrostatic charges safely while providing strong adhesion for electronics packaging, PCB assembly, and cleanroom applications. The tape features a conductive grid pattern embedded within a static-dissipative film, making it ideal for sealing ESD shielding bags, grounding surfaces, and protecting static-sensitive components.

1. What is Conductive Grid Tape?

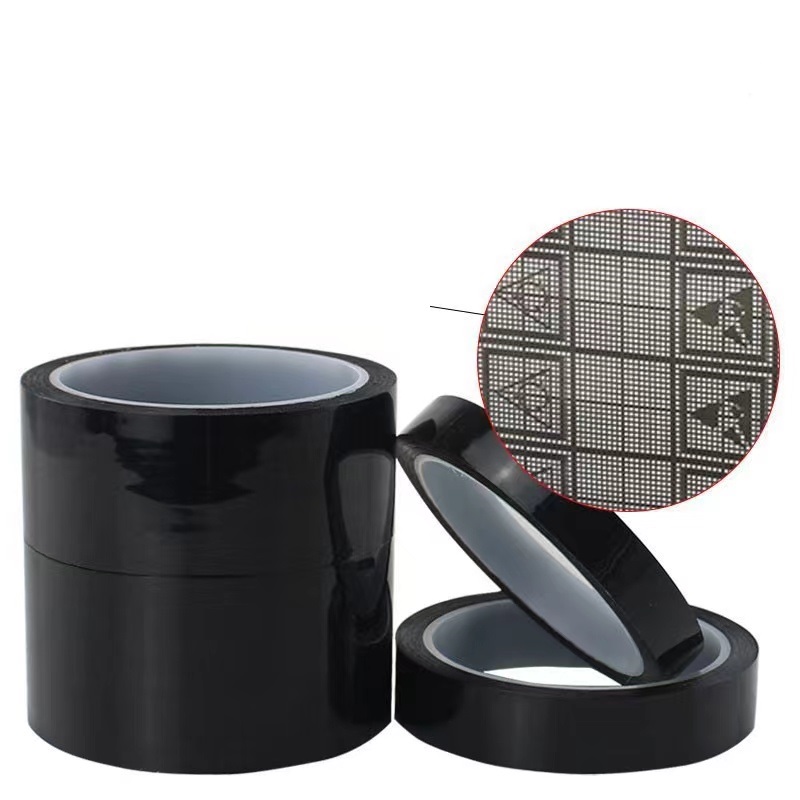

Conductive grid tape is made from a polyester film with a printed grid pattern of conductive carbon lines, creating a pathway for electrostatic discharge. It is coated with a low-static adhesive to prevent charge buildup during application and removal.

Key Properties:

Electrostatic Dissipation – Safely channels static away from sensitive electronics.
Low Tribocharging – Generates minimal static when unrolling or peeling.
Strong Adhesion – Securely seals surfaces without leaving residue.
Conductive Grid Design – Ensures continuous charge dissipation.
Transparent Film – Allows visibility of underlying labels and components.
RoHS & REACH Compliant – Environmentally friendly and safe for electronics.

2. Key Features & Benefits of Conductive Grid Tape

Prevents Electrostatic Damage (ESD) – Protects PCBs, semiconductors, and electronic components.
Ideal for Sealing ESD Shielding Bags – Ensures static-safe packaging.
Conductive Carbon Grid – Creates a low-resistance discharge pathway.
Transparent & Easy to Use – Allows clear visibility of contents when applied.
Leaves No Residue – Clean removal without contaminating sensitive areas.
High Durability & Flexibility – Resistant to tearing, stretching, and impact.

3. Types of Conductive Grid Tape

Standard Conductive Grid Tape

General-purpose ESD-safe tape for sealing bags, packaging, and workstation applications.
Features carbon-printed conductive grid lines for charge dissipation.

Anti-Static Conductive Grid Tape

Designed for cleanroom and electronics assembly environments.
Low-tribocharging adhesive minimizes charge generation during handling.

High-Temperature Conductive Grid Tape

Heat-resistant version for use in PCB soldering and electronics assembly.
Withstands moderate heat exposure without losing adhesion.

4. Common Applications for Conductive Grid Tape

Sealing ESD Shielding Bags & Moisture Barrier Bags
PCB Handling & Assembly (Static-Safe Workstations)
Grounding & Bonding in ESD-Safe Environments
Electronics Packaging & Semiconductor Protection
Label Protection in Static-Sensitive Areas

5. Industry Standards for Conductive Grid Tape

ANSI/ESD S541 & IEC 61340-5-1 – Meets ESD protection standards for packaging.
RoHS & REACH Compliant – Safe for electronics and environmentally friendly.
MIL-STD-1686 – Military-grade static control for electronics handling.

6. How to Use Conductive Grid Tape?

Choose the appropriate width & type based on your application.
Apply the tape to ESD-sensitive packaging or workstations.
Use in combination with ESD bags, mats, and wrist straps for complete protection.
Remove cleanly without leaving residue.

7. Summary – Why Use Conductive Grid Tape?

Provides static-safe packaging & workstation protection
Conductive grid design dissipates electrostatic charges safely
Strong adhesion with easy removal (no residue left behind)
Essential for electronics, PCB assembly, and semiconductor applications
Meets ANSI/ESD, IEC, and RoHS standards
